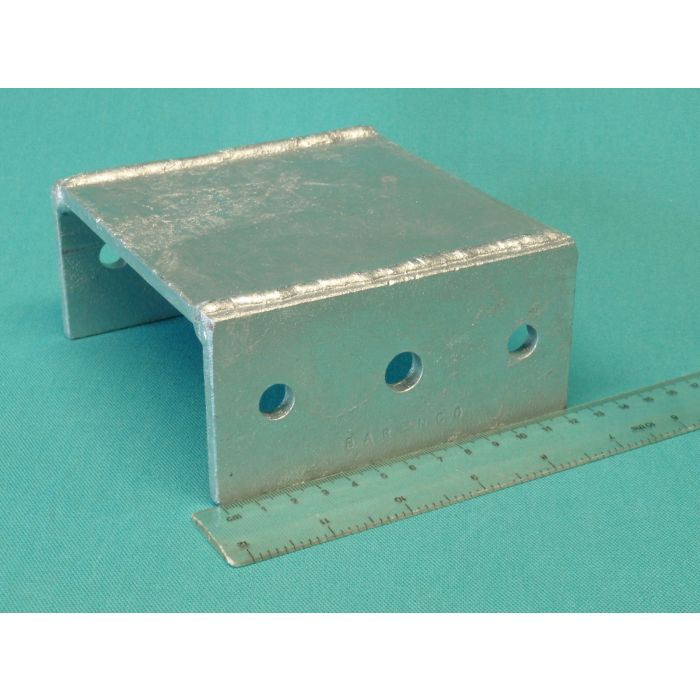

5" Channel Bracket
Wall bracket for mast which is required to clear very small or no overhang or Pole to Pole spacing of 5” (125mm) Nominal.
Wall fixing can be with either 1 x 13mm hole in centre of plate or 2 x 11.5mm holes, 86mm apart on centre line.
Drilled to take 1 x BE946 ‘V’ or BE947 ‘U’ bolt and requires only a single fixing per bracket. Wall fixings recommended are Order Code : BE917/10 and BE917/12 for single fixing
If a larger overhang needs clearance then 2 brackets can be bolted together to increase clearance.
3” ‘V’ Bolts Order Code : BE946 (V Bolts Sold Separately)
or
3” ‘U’ Bolts Order Code : BE947 (U Boilts Sold Separately)
Both end frames are drilled identically so this bracket can be used to connect two poles together with the 5" spacing.
Finish : Sherardized
Designed and Manufactured by BARENCO
Wall bracket for mast which is required to clear very small or no overhang or Pole to Pole spacing of 5” (125mm) Nominal.
Wall fixing can be with either 1 x 13mm hole in centre of plate or 2 x 11.5mm holes, 86mm apart on centre line.
Drilled to take 1 x BE946 ‘V’ or BE947 or ‘U’ bolt and requires only a single fixing per bracket. Wall fixings recommended are Order Code : BE917/10 and BE917/12 for single fixing
If a larger overhang needs clearance then 2 brackets can be bolted together to increase clearance.
3” ‘V’ Bolts Order Code : BE946 (V Bolts Sold Separately)
or
3” ‘U’ Bolts Order Code : BE947 (U Boilts Sold Separately)
Both end frames are drilled identically so this bracket can be used to connect two poles together with the 5" spacing.
Finish : Sherardized
Designed and Manufactured by BARENCO
| SKU | BE309 |
|---|
| Icon | Label | Description | Type | Size | Download |
|---|---|---|---|---|---|
 | BE305,6,9,10 - 2" & 3" Channel brackets | 60.7 KB | Download |
