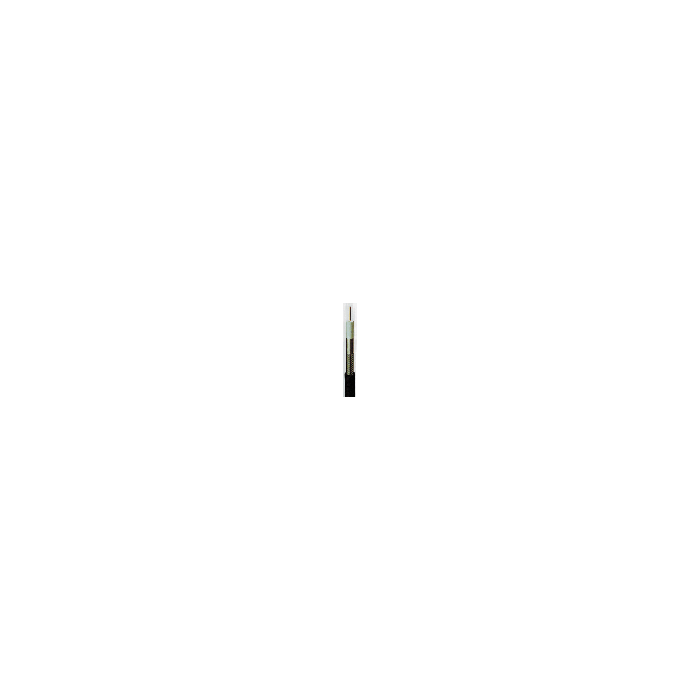

ANT 240 Low Smoke Halogen Free 50 Ohm Coaxial Cable
£2.65 £2.21
In stock
SKU
ANT240-LSHF
- Buy 100 for £2.21 £1.84 each and save 17%
ANT-240 50 ohm Antennax RF coaxial cable. 6.1mm dia. low loss, high performance feeder cable equivalent to RG8Mini with a solid core, foam dielectric, twin screened and LSHF jacket.
Multiple quantities ordered will be supplied in one continual length upto 100m.
PRICED PER METRE
| SKU | ANT240-LSHF |
|---|---|
| Cable Options | ANT 240 LSHF |
| Ohms Ω | 50 |
| Velocity % | 84 |
| Inner Conductor (mm) | 1/1.42 |
| Dielectric Diameter (mm) | 3.81 |
| Dielectric Material | Foam PE |
| Screen Material (1st) | Aluminium Tape |
| Screen Material (2nd) | Tinned Copper |
| Jacket Material | LSHF |
| Overall Diametre (mm) | 6.1 |
Write Your Own Review
| Icon | Label | Description | Type | Size | Download |
|---|---|---|---|---|---|
 | ANT240 50Ω LSHF | 443.3 KB | Download |
