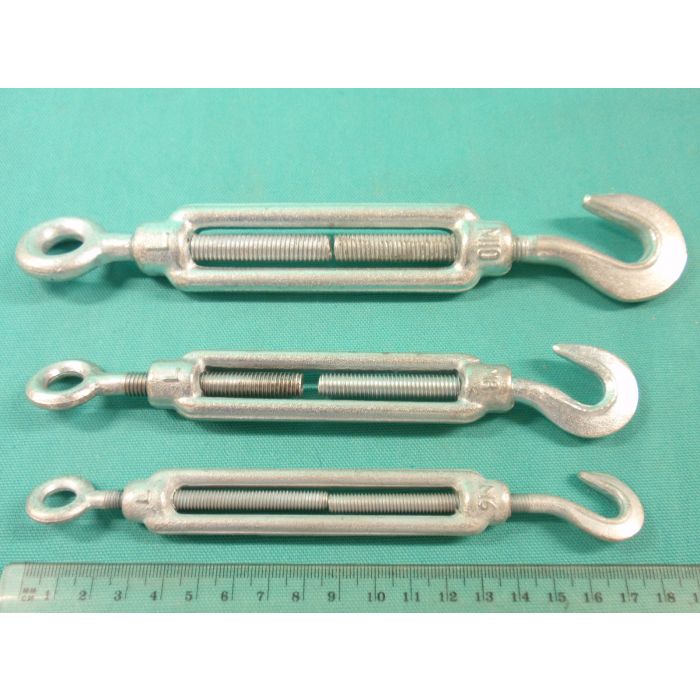

BE902 Turnbuckles
M6, M8 & M10 turnbuckles.
Supplied with a ring at one end and hook at the other.
This product is of commercial grade so carries no safe working details.
Finish : Bright Zinc Plated
BE902/06 - M6 turnbuckle with a barrel length of 100mm.
Overall Closed Length : 180mm Maximum
Overall Extended Length : 260mm Maximum
Tensioning Length : 80mm Maximum
Eye Dimensions : 19mm External - 9mm Internal.
Hook Dimensions : 8mm Gap - 15mm Deep
BE902/08 - M8 turnbuckle with a barrel length of 110mm.
Overall Closed Length : 185mm Maximum
Overall Extended Length : 265mm Maximum
Tensioning Length : 80mm Maximum
Eye Dimensions : 23mm External - 10mm Internal.
Hook Dimensions : 10mm Gap - 20mm Deep
BE902/10 - M10 turnbuckle with a barrel length of 125mm.
Overall Closed Length : 225mm Maximum
Overall Extended Length : 315mm Maximum
Tensioning Length : 90mm Maximum
Eye Dimensions : 31mm External - 13mm Internal.
Hook Dimensions : 13mm Gap - 25mm Deep
This product is of commercial grade so carries no safe working details. Finish : Bright Zinc Plated
| SKU | BE902 |
|---|
