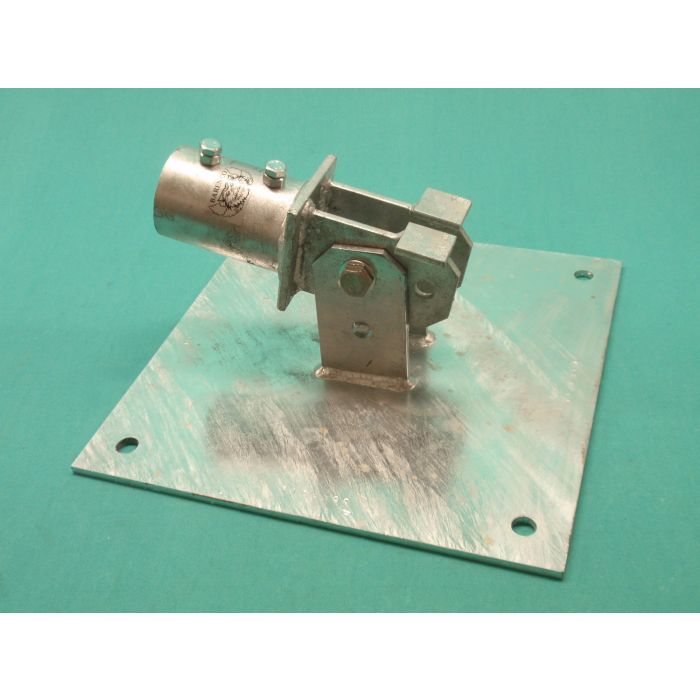

BE202 - Base Tilt Support with Lock up to 2"
The base tilt support is a combination of BE201 and BE211 designed to hold a mast and be used in conjunction with a suitable wall bracket or guying system.
Available in 1.5" and 2" sockets with 200mm or 300mm base.
The base tilt support is a combination of BE201 and BE211 designed to hold a mast and be used in conjunction with a suitable wall bracket or guying system.
The 200mm or 300mm square plate has 4 x 14mm holes for fixing or will accept BE508 Ground Stake with T Handle 13", at extra cost.
When installed the bracket has 2 x M12 hex bolts and self locking nuts as the hinge support and adjustment to these can increase or decrease the friction on the hinge so controlling the raise and fall of the mast.
This product has a over extension stop so when being raised will stop at the vertical to aid the installation of the locking bolt.
The 1.5" version has 2 x M8 bolts to secure tube and help prevent rotation, the 2" version has 2 x M10 bolts.
Designed and manufactured by BARENCO.
Finish: Sherardized
| SKU | BE202 |
|---|
