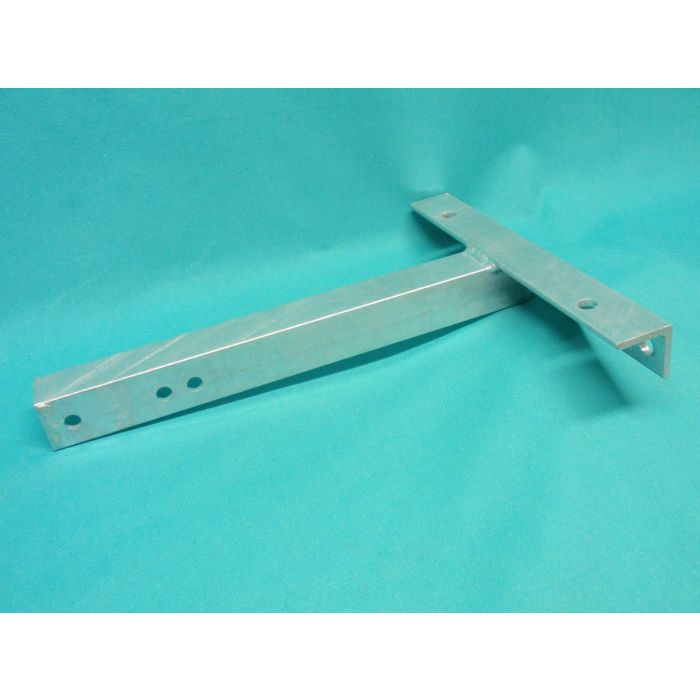

T - Wall Brackets

A range of T wall brackets to suit almost any application and constructed from 40mm x 40mm x 5mm angle iron, and totally seam welded.

All fixing holes are 13mm for wall mounted brackets unless otherwise stated.

All brackets are drilled to take a 2" - 3" Mast

Finish: Sherardized

Designed and manufactured by BARENCO.

( Please Note. When a 3" 'U' or 'V' bolt is used the Mast to wall clearance is reduced by 25mm).

BE402/09 Mast to wall clearance of 9" ( 235mm) Approx. Overall is 12" (310mm).

BE402/12 Mast to wall clearance of 12" (310mm) Approx. Overall is 15" (385mm) - Currently out of stock. Hoping to have stock back in early 2024.

BE402/18 Mast to wall clearance of 18" (460mm) Approx. Overall is 21" (535mm)

BE402/24 Mast to wall clearance of 24" (615mm) Approx. Overall is 27" (690mm)

Mast fixing U & V Bolt options. (Link will open in new window.)

BE915 2” ‘V’ Bolt M10 x 83mm BZP ( 1 required per bracket )

BE915SS 2” ‘V’ Bolt M10 x 70mm Stainless Steel A2 ( 1 required per bracket )

BE953 2” ‘U’ Bolt M10 x 73mm BZP ( 1 required per bracket )

BE947 3” ‘U’ Bolt M10 x 102mm BZP ( 1 required per bracket )

BE946 3” ‘V’ Bolt M10 x 110mm BZP ( 1 required per bracket )

Wall fixing options.

BE917/12 Sleeve Anchor12mm x 75mm ( 2 required per bracket )

BE922/10 Shield Anchor Bolt M10 x 70mm ( 2 required per bracket )

Optional secure mast fixing

BE217/2 Sliding Socket with Clamp & Lock 2” ( 1 required per bracket )
