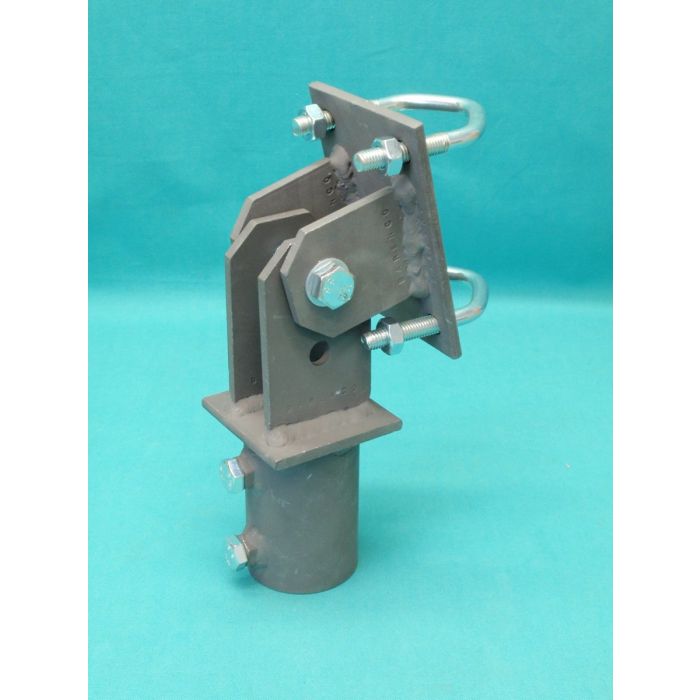

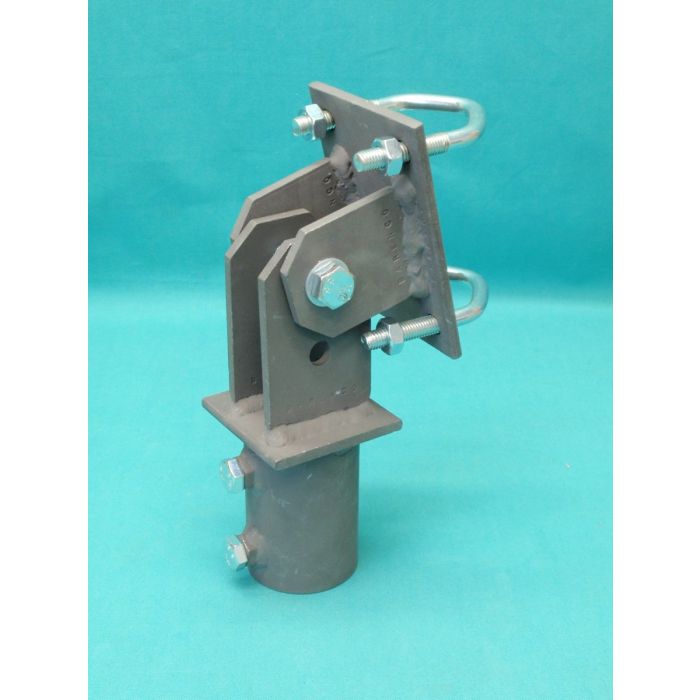

BE216 Top Pole Tilt Pivot Bracket
BE216 Top Pole Tilt Pivot Bracket designed as part of our XS System to aid the installation and maintenance of aerial mounted to masts.
By just tilting down the mast with the aerial on is easier than lowering the whole system.
With a pivot at the top of a vertical pole then the pole mounted to it if placed in the middle will have a balanced weight therefore reducing the effort required to raise and lower.
Designed and manufactured by BARENCO.
This top hinge can be used to tilt one mast against a static mast either from the top or from part way up to suit your own requirement.
With one pole in the socket this acts as a permanent stop to the mast so keeping control at all time.
Top pole tilt pivot bracket will sit on top of a 2" or scaffold (48.3mm) mast and attach a lighter duty mast as a long wire support or similar.
BE216 Top Pole Tilt Pivot Bracket designed as part of our XS System to aid the installation and maintenance of aerial mounted to masts.
Both in Amateur Radio and Commercial Radio Communications will have a requirement to maintain the aerial system.
By just tilting down the mast with the aerial on is easier than lowering the whole system.
With a pivot at the top of a vertical pole then the pole mounted to it if placed in the middle will have a balanced weight therefore reducing the effort required to raise and lower.
When installed the bracket has 2 x M12 hex bolts and self locking nuts as the hinge support and adjustment to these can increase or decrease the friction on the hinge so controlling the raise and fall of the mast.
The BE915 V Bolts supplied with the top plate will accommodate 1.5 - 2.0 inch pole.
Designed and manufactured by BARENCO.
Finish: Sherardized
| SKU | BE216 |
|---|
