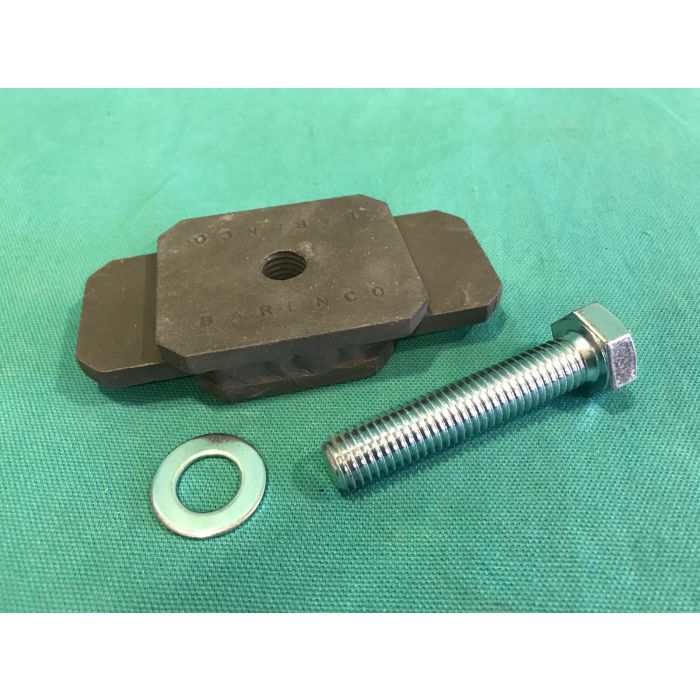

BE727 ISO Shipping Container Mounting Nut
This nut can be bolted to any of the three sides of a shipping container to mount either a channel bracket on the side or a BE730 base plate to the top. A secure mounting for any of the XS system top accessories.
No driilling into container and easy to fit. A single central M12 specially designed nut to sit inside the corner casting of a shipping container and is anti-rotational when fitted correctly. The simplicity of the design is in the special nut which locates into the cast corner on either of the faces, with the 60mm nut face on the top slot and the 45mm nut face on the side slot, which then allows a single 19mm spanner to lock everything up tight, because the nut will not rotate or pull through the slot.
A BE730 125mm x 125mm XS Base plate can be fitted in this way giving a support for any of the XS Tops available. The BE305 Channel Bracket can be fitted on the vertical plane at the top and bottom of any corner for a support mast.
This will still allow the container door to open 180 degrees.
Channel brackets and ‘U’ & “V’ bolts sold seperately.
Note. All of our Channel Brackets come with a 13mm centrally drilled hole to suit this application. BE305, BE306, BE309 and BE310.
|BE727||Shipping container Mounting Nut & bolt||68.1 KB||Download|
