1.5" - 2" Colinear Mounting Bracket
Colinear mounting bracket in aluminium bracket capable of securing up to a 2” based colinear aerial on to a mast with a max diameter of 2” or 50.8mm, or any in line pole of a lesser diameter. The main advantage for this type of clamp means, that should it work loose the worst thing that will happen is the aerial or pole will slide down the main mast and not “walk round” the mast. Not supplied with any bolts, so you will need to purchase these seperately to suit your pole sizes as listed below.
Bolts that will fit but not supplied.
BE914 - 1.5” ‘V’ Bolt to suit up to 1.5” pole.
BE952 - 49mm ‘U’ Bolt to suit scaffolding 48.3mm pole. BE955 - 2” ‘V’ Bolt to suit up to 2” pole.
BE956 - 2” ‘U’ Bolt to suit 2” pole.

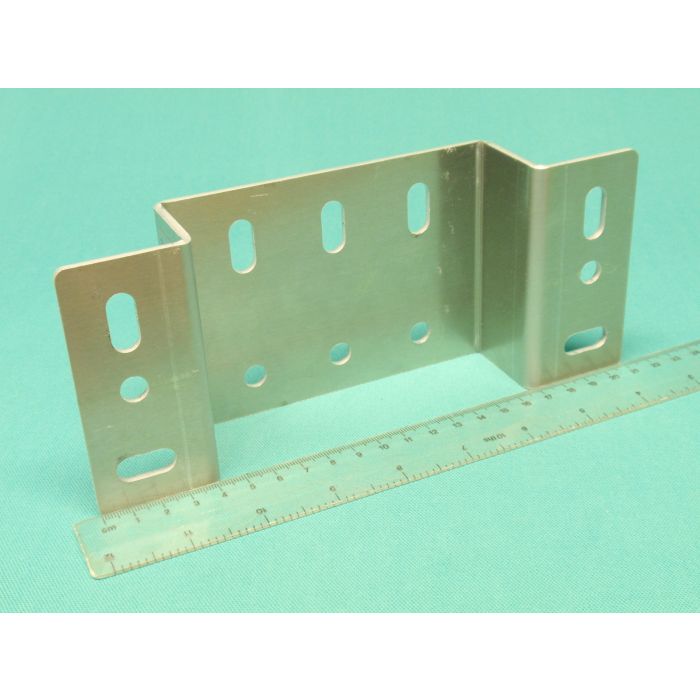

Bracket has a footprint of 210mm x 90mm wide and is raised 40mm from the foot, with a 130mm x 90mm top hat for the 2” colinear to sit with three pairs of pre-drilled holes and slots to accommodate the various bolts.
Note. This bracket has been re-designed to increase the bolt sizes to 2”. Material : 3mm thick Aluminium and is self coloured when supplied.
Please note that when selecting your choice of bolts that 2 bolts of the same size are required for each pole, 2 poles = 4 bolts.
Colinear mounting bracket in aluminium bracket capable of securing up to a 2” based colinear aerial on to a mast with a max diameter of 2” or 50.8mm, or any in line pole of a lesser diameter. The main advantage for this type of clamp means, that should it work loose the worst thing that will happen is the aerial or pole will slide down the main mast and not “walk round” the mast. Not supplied with any bolts, so you will need to purchase these seperately to suit your pole sizes as listed below.
Bolts that will fit but not supplied.
BE914 - 1.5” ‘V’ Bolt to suit up to 1.5” pole.
BE952 - 49mm ‘U’ Bolt to suit scaffolding 48.3mm pole. BE955 - 2” ‘V’ Bolt to suit up to 2” pole.
BE956 - 2” ‘U’ Bolt to suit 2” pole.
Bracket has a footprint of 210mm x 90mm wide and is raised 40mm from the foot, with a 130mm x 90mm top hat for the 2” colinear to sit with three pairs of pre-drilled holes and slots to accommodate the various bolts.
Note. This bracket has been re-designed to increase the bolt sizes to 2”. Material : 3mm thick Aluminium and is self coloured when supplied.
Please note that when selecting your choice of bolts that 2 bolts of the same size are required for each pole, 2 poles = 4 bolts.
| SKU | BE307 |
|---|
