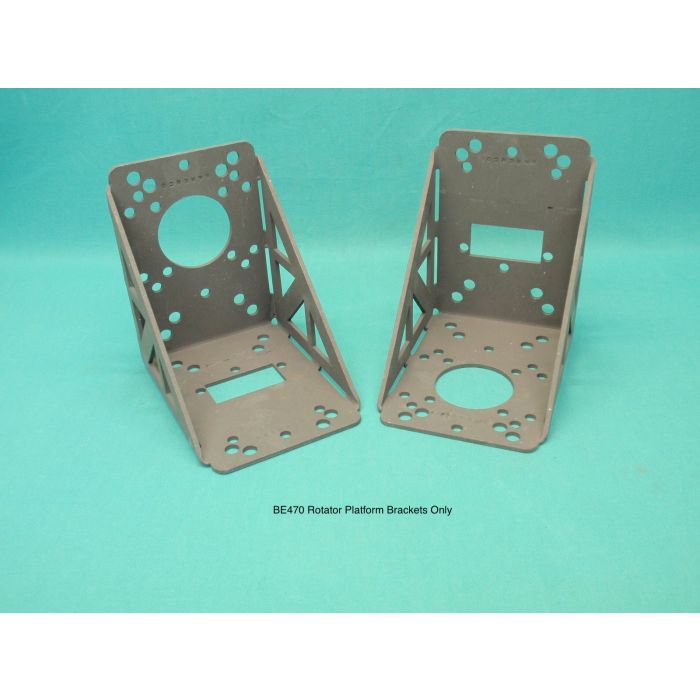

BE470 - Rotator Platform brackets for Yaesu, Hy-gain, Create & Daiwa Rotators & Bearing
The new re-designed rotator platform set is now available.
Both upper and lower brackets are identical and can be used to mount all Yaesu rotators as before but now include Create & Hy-Gain rotators including, Ham-IV, Tailtwister, and also Daiwa.
If unsure that your rotator will fit then check the BE470-GA drawing to confirm before ordering.
Re-designed replacement rotator platform brackets can now be used for Yaesu, Create, Hy-gain & Daiwa but please check the BE470-GA drawing to confirm before ordering.
These brackets are designed to mount a Bell Type rotator to the side of a mast with a bearing above rotating the aerial mast.
To assemble and maintain the aerial system the complete mounting mast and rotating mast should be lowered as one unit.
( Note. These bracket can't be mounted direct to a wall.)
The only bearing that will fit the brackets is the Yaesu GS065 but the fixing centres and hole clearance are on the BE470-GA if you have another make available.
The centre line of the rotating mast to the outside mounting mast is 115mm. The mounting of the brackets for the rotator being used needs to be checked and bolts to mount the platforms selected on purchase when adding to basket.
Additional information.
We suggest when deciding to mount the platforms that a spacing of at least one third of the mast being rotated being below the bearing. i.e 3.5 feet below the bearing for a 10 foot mast and 1 metre for a 3 metre mast.
For larger antenna systems it's possible to fit saddles under the U and V bolts if required to avoid the rotation of the platforms on the mounted mast, this will also increase the mast clearance from 115mm to approx. 135mm subject to mast diameter.
2" saddle - Order Code BE926
3" saddle - Order Code BE921
This pair of brackets and selected bolts have a combined weight of 4.2Kg or less before adding the rotator and bearing. If you require a second bearing bracket and bearing please contact the sales office on +44 (0)1949 860400
The following Rotators and Bearing can be purchased from Barenco together with your platforms on this website. Yaesu: G-450CDC, G-1000DXC, G-2800DXC & GS-065 bearing & Create RC5A3P
Designed and manufactured by BARENCO.
Finish: Sherardized
| SKU | BE470 Rotator Platform Brackets Range |
|---|---|
| Material | Sherardized |
