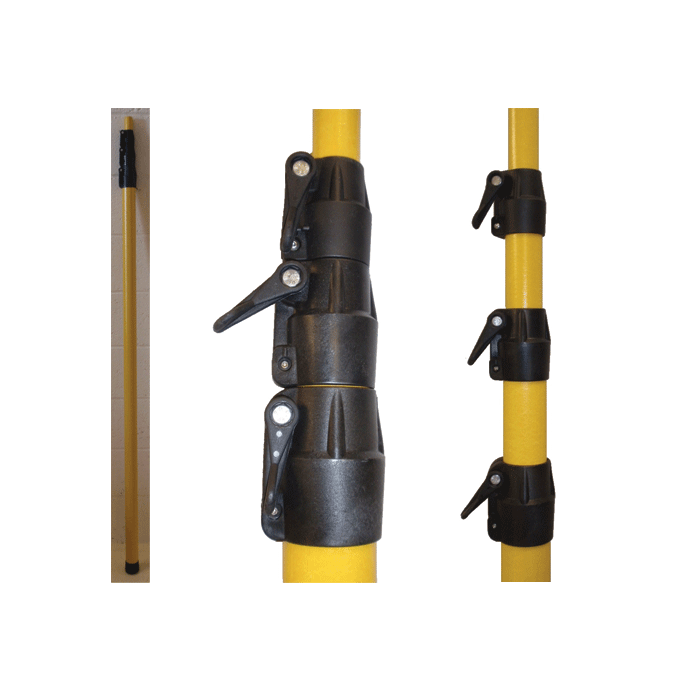

Telescopic Fibreglass Poles, Grey or Yellow

BE2592YL & BE2592GY

BE2592 Yellow or Grey

Overall closed 2.5 metres Overall extended 9.2 metres Weight 4.6 Kg Approx.

All sections have a 2mm wall thickness

The masts have over extension stops
on each section to ensure safe working.

Cam tension adjustment. Note. Left hand thread. ( Anti-clock to tension )

Vertical head-load not to exceed 6 KG
this is the vertical load the mast cam sections can support, but are adjustable with a turn
of the nut opposite the cam lever, this is subject to the mast being fully guyed.
Note: Over tightening the cam nut will break the cam body.

All masts have the same 4 sections with each section length determines its overall height.

Replacement Lock Levers available - BE1864

The top section can have a cap fitted to reduce rainwater entry and this is available as order code BE973 - 1.1/8” charged and ordered separately.

Base cap can be removed and replaced with an internal cover cap available as order code BE985 - 2” charged and ordered separately. This will be required if using in a 2” socket cap.

Rotatable guy rings are available for all sections and manufactured from Aluminium and HDPE. Each guy ring can be purchased with order code BE620/plus the section diameter with 1mm added. i.e. for the top section of 30mm - BE620/31.

A full set of 3 order code BE620-T-KIT.
Note: To fit the guys onto the two middle sections they will need to be separated and reassembled around the mast.
