Telescopic Fibreglass Poles, Grey or Yellow

As low as £180.00 £150.00
In stock
Only %1 left
SKU
BE1863/2592

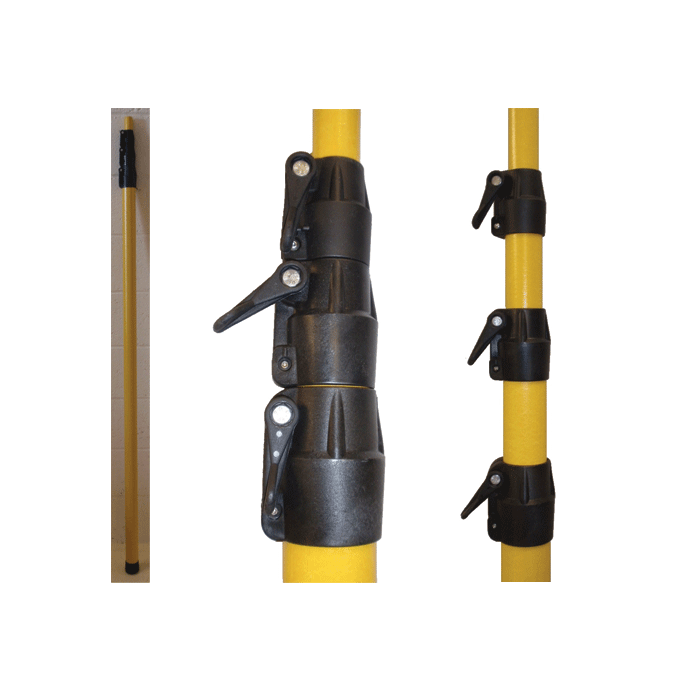

4 Section telescopic masts in Yellow or Grey.

BE1863 - Closed 1.8m x Extended 6.3m

BE2592 - CLosed 2.5m x Extended 9.2m

BE1863YL, BE1863GY, BE2592YL & BE2592GY

BE1863YL & GY

Overall closed 1.8 metres Overall extended 6.3 metres Weight 3.4 Kg Approx.

BE2592YL & GY

Overall closed 2.5 metres Overall extended 9.2 metres Weight 4.6 Kg Approx.

All sections have a 2mm wall thickness

All masts have over extension stops
on each section to ensure safe working.

Cam tension adjustment. Note. Left hand thread. ( Anti-clock to tension )



Vertical head-load not to exceed 6 KG
this is the vertical load the mast cam sections can support, but are adjustable with a turn
of the nut opposite the cam lever, this is subject to the mast being fully guyed.
Note: Over tightening the cam nut will break the cam body.

All masts have the same 4 sections with each section length determines its overall height.

The top section can have a cap fitted to reduce rainwater entry and this is available as order code BE973 - 1.1/8” charged and ordered separately.

Base cap can be removed and replaced with an internal cover cap available as order code BE985 - 2” charged and ordered separately. This will be required if using in a 2” socket cap.

Rotatable guy rings are available for all sections and manufactured from Aluminium and HDPE. Each guy ring can be purchased with order code BE620/plus the section diameter with 1mm added. i.e. for the top section of 30mm - BE620/31.

A full set of 3 order code BE620-T-KIT.
Note: To fit the guys onto the two middle sections they will need to be separated and reassembled around the mast.

More Information
SKUBE1863/2592
