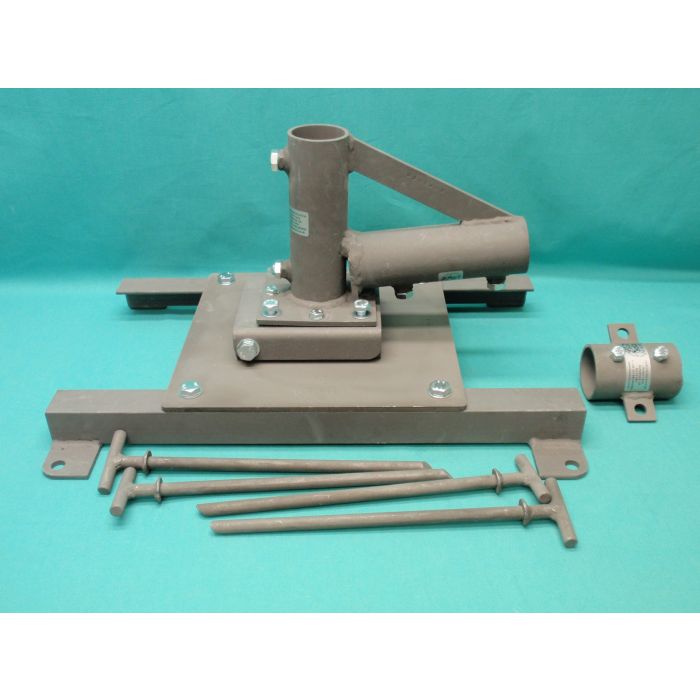

BE103 Tilt Over Field Station 2" Main Mast
As low as £300.00 £250.00
In stock
Only %1 left
SKU
BE103
This design is based on a well proven gin pole technique, with the addition of many other practical features all combined in one unit.
Recently redesigned from our XS System range of modular items comes the added security of the mast when raised will pull up to the vertical position.
All gin poles are for 2" maximum size.
Comes complete with gin pole cap and 4 ground stakes BE508 to prevent sliding when being raised and lowered.
This product is an ideal choice for temporary location such as field events, or the more permanent location.
This design is based on a well proven gin pole technique, with the addition of many other practical features all combined in one unit.
Recently redesigned from our XS System range of modular items comes the added security of the mast when raised will pull up to the upright position.
All gin poles are for 2" maximum size.
It's made up of the following XS system modules. 2" Standard.
BE736 Mounting Angles with feet
BE732 Base Plate 300mm x 300mm fixed bolts
BE770 Base Hinge with 2 x M12 hex bolts and self locking nuts.
BE760 Field Station Top Bracket 2" Socket
BE209 Gin Pole Cap 2" socket
BE508 Ground Stake with T Handle Bar
Comes complete with gin pole cap and 4 ground stakes BE508 to prevent sliding when being raised and lowered.
The tilt mechanism has a wider base when being tilted and a positive vertical stop, over the previous model.
When installed the bracket has 2 x M12 hex bolts and self locking nuts as the hinge support BE770 and adjustment to these can increase or decrease the friction on the hinge so controlling the rise and fall of the mast.
This product is an ideal choice for temporary location such as field events, or the more permanent location.
We have added the drawing / assembly sheet to the photo section and also made it available as a download should you need it.
If this arrangement of parts is not suitable for mounting as required the full range of brackets can be found at XS System and purchased as single parts.
All parts within the XS System are designed and manufactured by BARENCO.
Finish: Sherardized
| SKU | BE103 |
|---|
Write Your Own Review
| Icon | Label | Description | Type | Size | Download |
|---|---|---|---|---|---|
 | BE103 | BE103 Tilt Over Field Station | 82.3 KB | Download |
